Product introduction:
1. Servo control of bending and wire feeding ensures the accuracy of the bending angle and size of the finished stirrup. The machine can work continuously for 24 hours.
2. Dual system servo drive for free switching and to prevent shutdown due to one system failure.
3. Intelligent fault identification for convenient detection and maintenance. Centralised oil supply lubrication prolongs the service life of the equipment.
4. Interactive man-machine interface operation, with the ability to store various shapes and graphics for immediate use.
Product Parameter
| Automatic Stirrup Bending Machine YT-12S |
| Remote Function | 3 way control | Straightening System | S ARC STRAIGHT |
| Single Wire | 6-12MM | Production Capacity | 750PCS/Hour(single) |
| Double Wire | 6-10MM | Production Capacity | 1500PCS/Hour(double) |
| Bending Angle | 1-180 degree | Bending Head Move | Up and down |
| Max Traction Speed | 130M/MIN | Bending Direction | Bi-direction |
| Length Accuracy | ±1MM | Machine Dimension | 3000*1280*2000MM |
| Angle Accuracy | ±1 degree | Collector Dimension | 6600*810*1640MM |
| Main Machine Weight | 2000KG | Rated Power | 29.5KW |

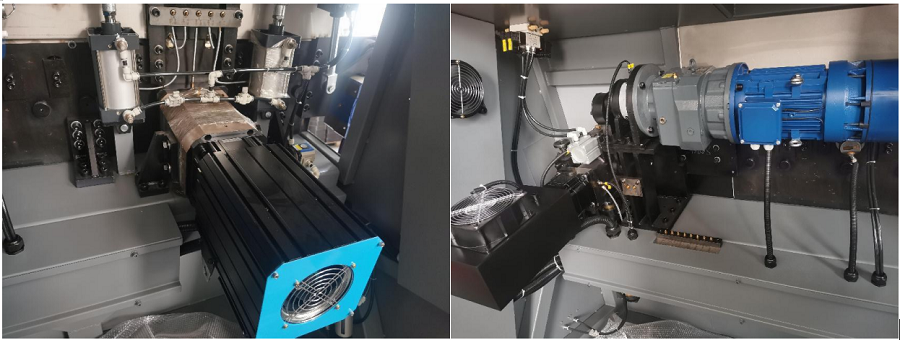

Product details:
1. The cutting motor uses a servo motor instead of a brake motor, so there is no need to worry about damage to the brake or a short working life.
2. The encoder and sensor use the IFM (Germany) brand and we offer a 5-year warranty.
3. Reverse feeding system for making plate stirrups.
FAQ
1. What’s the production time?
According to the model,YT-12 we have machine in stock,only 10 days we can prepare,other model need around 20 days.
2. What's the shipment port?
Normally, we will choose shanghai port,if you have requirement,we can send any chinese port you need.
3. What’s the warranty time for cnc stirrup bender?
We can provide 1 year after-sell service for cnc stirrup bender,any part break within one year,we will provide free spare parts.
4. what kind of package you will provide?
We will provide naked packages,which will wrapped with film,but its safe.
Factory Show
